Description

DHO802

Analog Bandwidth: 70Mhz

Analog Channels: 2

Maximum Real-time Sample Rate: 1.25GSa/s

Maximum Memory Depth: 25 Mpts

Maximum Waveform Capture Rate: 1,000,000 wfms/s

• 【Key Specs】70 MHz digital oscilloscope with 2 analog channels + EXT TRIG input, 1.25 GSa/s sampling, 12-bit resolution and up to 25 Mpts memory depth—useful for long acquisitions and small ripple/noise inspection.
• 【UltraAcquire & Visibility】UltraAcquire up to 1,000,000 wfms/s with 256-level intensity grading; waveform search/navigation and event table reduce time spent scanning long captures for intermittent glitches.
• 【Trigger & Decode】Peak detect captures glitches down to 1.6 ns; 41 auto measurements and FFT up to 1 Mpts with filters. Standard serial trigger/decode supports CAN, RS232/UART, I2C, SPI and 4-bit parallel decode using analog channels.

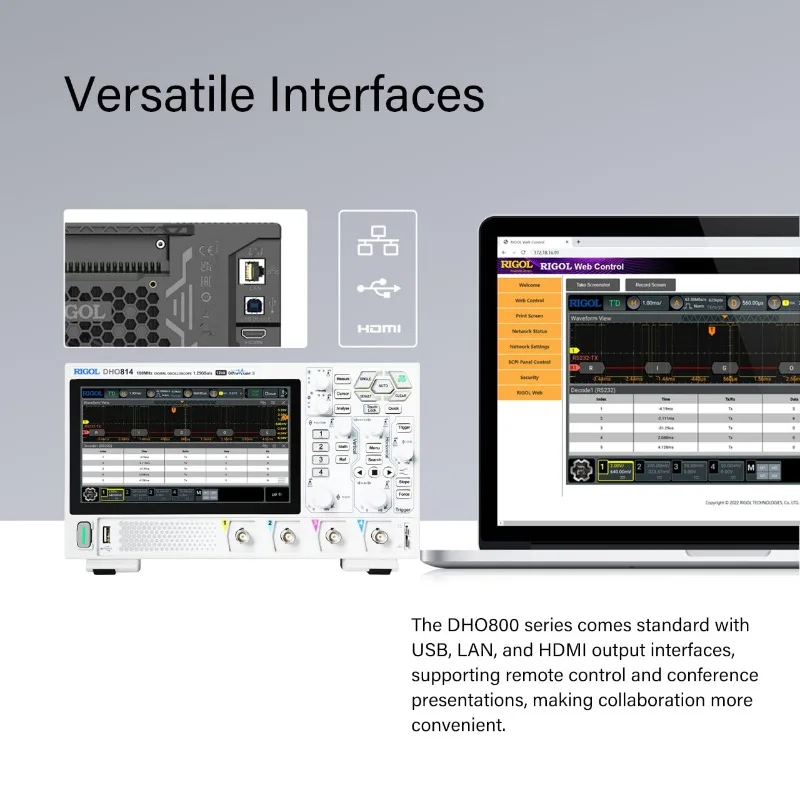

• 【Remote Control SCPI】LAN offers Web Control and LXI‑C; standard SCPI command set supports automation. USB Host/Device and HDMI help save data and connect external displays for documentation and training.

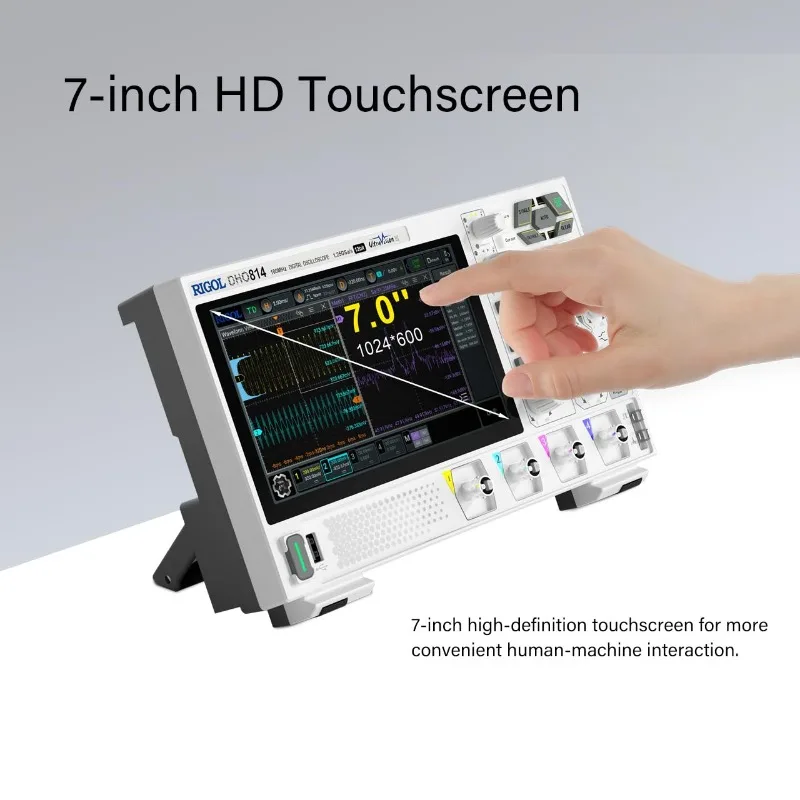

• 【Applications】Digital oscilloscope for SMPS ripple/noise, embedded bring-up and CAN/UART/I2C/SPI bus troubleshooting; EXT TRIG supports flexible triggering, and 7″ touch display improves daily bench use.
